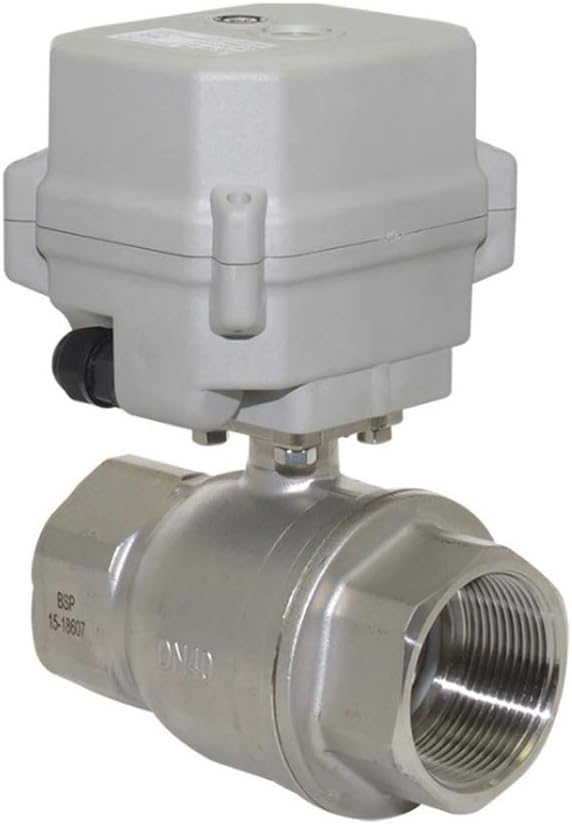

DC 12V 2-Way Motorized Ball Valve NPT 2'' Electric Ball Valve CR2-01 with Manual Override & Indicator Stainless Steel 304
Product details
| Management number | 221426452 | Release Date | 2026/05/03 | List Price | US$74.00 | Model Number | 221426452 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Product size: NPT 2''(DN50mm);Maximum working pressure:1.0MPa;Rated voltage:DC 12V; Wiring control methods: CR2-01
- Working current:No more than 1.5A; Open/close time:No more than 12S;Life time:70000 times(Testing pressure is 0.4Mpa,medium is water)
- Valve body material: 304 Stainless Steel; Actuator material: PPO ; Sealing material:FKM & PTFE
- Actuator rotation: 90°;Max torque force: 15 N.m
- Environmental temperature: -15℃-50℃(-59℉-122℉); Liquid temperature:2℃-90℃(35.6℉-194℉)
| UPC | 791295743580 |
|---|---|
| Size | NPT 2'' (DN50mm) |
| Set Name | A150-T50-B-s2-CR2-01-DC12V-NPT |
| Brand Name | BOKYWOX |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Thread Size | 2 inches |
| Thread Type | NPT |
| Manufacturer | BOKYWOX |
| Model Number | A150-T50-S2-CR2-01-DC12V |
| Material Type | Stainless Steel |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 3.93 x 7 x 7 inches |
| Number of Ports | 2 |
| Maximum Pressure | 10 Bars |
| Number of Pieces | 1 |
| Specification Met | CE, WRAS |
| Inlet Connection Size | 2 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 2 Inches |
| Outlet Connection Type | FNPT |
| Manufacturer Part Number | DC-12V-MO&I |
